Choosing between grades of clear paint protection film comes down to thickness, top coat, gloss and warranty, and how those numbers behave on the panels you actually cover. This page works as a selection hub rather than a product detail page: it puts every series in one matrix so installers, shops and distributors can line up automotive paint protection film grades side by side, then shortlist two or three constructions worth testing on the next front-end job.
Five numbers on the specification table decide most of the buying question. Here is what each one changes when you are quoting a job or stocking a roll.
The range runs from 6.5 mil (EX7) to 9.5 mil (SU10, EG10, PE10, CG10). More thickness adds mass against stone chips and road debris; thinner film conforms more easily around bumper corners, mirrors and tight body lines.
The table lists CeramicFusion™, EliteTec™, ProFusion™, QuantumLayer™, Self-healing™, UV-Carved™, QuantumBlack™ and CarbonFiber™. The top coat drives the finish character, the self-healing behaviour and the stain resistance you are selling.
Read at a 60° angle, the figure runs from 22 GU on MT8-MAX to 150 GU on UVGard™ UV9. Use it to match a film to the paint beside it — a 95 GU clear film and a 147 GU film do not read the same in daylight.
Resistance to being pulled apart. PE10 sits at 46.77 MPa while MIRROR BLACK is listed at 21.17 MPa. Higher values usually mean more force and more installer control needed during stretching.
Resistance to a tear once the edge is nicked — the figure that matters when you wrap edges, lift film to reposition, or trim on the vehicle. Values are published as kN/m or MPa, depending on the row.
Listings run from 5 to 10 years by model. The product page notes the lifespan and manufacturer warranty depend on the model, environmental conditions and maintenance, so quote coverage with that qualifier.
Every model on the product page, in one table. Scroll sideways on a phone; the model column stays put so you never lose your place.
| Model | Top coating | Thickness | 60° gloss | Tensile strength | Tear strength | Warranty |
|---|---|---|---|---|---|---|
| SupremeGard™ SU10 | CeramicFusion™ | 9.5 mil | 97 GU | 35.80 Mpa | 83.27 kN/m | 10 Years |
| SU9 | CeramicFusion™ | 8.5 mil | 97 GU | 28.26 Mpa | 74.34 kN/m | 10 Years |
| SU8 | CeramicFusion™ | 7.5 mil | 97 GU | 26.39 Mpa | 70.48 kN/m | 10 Years |
| SE8 | CeramicFusion™ | 7.5 mil | 97 GU | 26.39 Mpa | 70.48 kN/m | 10 Years |
| EliteGard™ EG10 | EliteTec™ | 9.5 mil | 93 GU | 33.28 Mpa | 80.18 kN/m | 5 Years |
| EG9 | EliteTec™ | 8.5 mil | 101 GU | 24.00 Mpa | 78.76 kN/m | 5 Years |
| EG8 | EliteTec™ | 7.5 mil | 102 GU | 24.29 Mpa | 73.45 kN/m | 5 Years |
| EX8 | EliteTec™ | 7.5 mil | 145 GU | 41.62 Mpa | 89.11 kN/m | 5 Years |
| EX7 | EliteTec™ | 6.5 mil | 143 GU | 32.88 Mpa | 71.37 MP | 5 Years |
| UVGard™ UV9 | EliteTec™ | 8.5 mil | 150 GU | 24.54 Mpa | 78.01 Mpa | 8 Years |
| UV8 | EliteTec™ | 8.5 mil | 148 GU | 24.50 Mpa | 89.31 Mpa | 8 Years |
| PrimeGard™ PG8 | ProFusion™ | 7.5 mil | 95 GU | 30.53 Mpa | 85.85 kN/m | 8 Years |
| PE10 | ProFusion™ | 9.5 mil | 145 GU | 46.77 Mpa | 101.73 Mpa | 8 Years |
| PE9 | ProFusion™ | 8.5 mil | 147 GU | 40.31 Mpa | 97.12 Mpa | 8 Years |
| PE8 | ProFusion™ | 7.5 mil | 147 GU | 27.75 Mpa | 75.58 Mpa | 8 Years |
| QuantumGard™ GQ8 | QuantumLayer™ | 7.5 mil | 94 GU | 33.45 Mpa | 85.21 kN/m | 7 Years |
| ClearGard™ CG10 | Self-healing™ | 9.5 mil | 93 GU | 33.26 Mpa | 86.17 kN/m | 5 Years |
| CG9 | Self-healing™ | 8.5 mil | 93 GU | 29.98 Mpa | 84.37 kN/m | 5 Years |
| CG8 | Self-healing™ | 7.5 mil | 96 GU | 28.38 Mpa | 72.06 kN/m | 5 Years |
| CE8 | Self-healing™ | 7.5 mil | 140 GU | 29.39 Mpa | 93.50 kN/m | 5 Years |
| MatteGard™ MT8 | UV-Carved™ | 7.5 mil | 23 GU | 33.13 Mpa | 78.19 kN/m | 5 Years |
| MT8-MAX | UV-Carved™ | 7.5 mil | 22 GU | 46.34 Mpa | 86.48 kN/m | 8 Years |
| ME8 | UV-Carved™ | 7.5 mil | 42 GU | 29.06 Mpa | 85.15 Mpa | 5 Years |
| ME9 | UV-Carved™ | 8.5 mil | 43 GU | 31.01 Mpa | 77.25 Mpa | 5 Years |
| BlackGard™ BG-MAX | QuantumBlack™ | 7.5 mil | 91 GU | 19.49 Mpa | 52.60 kN/m | 10 Years |
| BG-PRO | QuantumBlack™ | 7.5 mil | 92 GU | 22.47 Mpa | 72.16 kN/m | 8 Years |
| BG-STA | QuantumBlack™ | 7.5 mil | 91 GU | 35.07 Mpa | 71.60 kN/m | 5 Years |
| MIRROR BLACK | QuantumBlack™ | 8.5 mil | 95 GU | 21.17 Mpa | 61.21 kN/m | 5 Years |
| CarbonFiberGard™ CF-STA | CarbonFiber™ | 7.5 mil | / | 27.38 Mpa | 82.37 kN/m | 5 Years |
| CF-CLE | CarbonFiber™ | 7.5 mil | / | 27.24 Mpa | 77.31 kN/m | 5 Years |
Values and units are reproduced as published on the product page. A slash means no 60° gloss figure is listed for that model. Confirm the current listing before you quote.
Each card names the specification to prioritise and the models worth pulling into a sample order — shortlists to verify, not ratings.
Buyer decision: the 9.5 mil rows carry the most mass, but they are also the least forgiving over a tight bumper shoulder — match the thickness to installer experience first.
Buyer decision: compare the sample against the adjacent unfilmed panel under the same light, and check that prep and lighting complaints do not come back as finish complaints.
Buyer decision: the page states coverage depends on model, environmental conditions and maintenance, so pair the promise with the Warranty and Maintenance Guide before it reaches a customer.
Buyer decision: the page states anti-yellowing UV-resistant formulations across the range — pick the top coat that matches the customer's sun exposure and wash routine.
Buyer decision: the page FAQ describes a thermal self-healing top coat where swirl marks and light scuffs recover with ambient heat or sunlight — set wash expectations at handover.
Buyer decision: a matte panel shows a sheen mismatch instantly, so agree the finish target with the customer and plan the whole panel set before any cutting starts.
Start from the vehicle and the driving pattern, then read the one column that decides the purchase. Every model listed below is taken from the matrix above.
| Scenario | Spec to check | Models to verify |
|---|---|---|
| Daily-driven commuter, full front | Balanced 7.5–9.5 mil with a 5–10 year listing | SU8, SU10, PG8, EG8, CG8 |
| Highway, gravel or track days | 9.5 mil plus the highest tensile and tear figures | PE10, SU10, EG10, CG10 |
| Long-hold ownership and resale | 10-year published warranty | SU10, SU9, SU8, SE8, BG-MAX |
| Strong sun, outdoor parking | UV-resistant top coat and 8-year listing | UV9, UV8, PE9, PE8, PG8 |
| Show-car gloss | 60° gloss of 145 GU and above | UV9, UV8, PE9, PE8, PE10, EX8 |
| Factory matte or satin paint | Low 60° gloss between 22 and 43 GU | MT8-MAX, MT8, ME8, ME9 |
| Black roof, mirrors and accents | QuantumBlack™ or CarbonFiber™ construction | BG-MAX, BG-PRO, BG-STA, MIRROR BLACK, CF-STA, CF-CLE |
| Tight bumper corners and complex curves | Thinner 6.5–7.5 mil for conformability | EX7, CG8, EG8, PE8, MT8 |
The 60° gloss column splits the range into four clearly different looks. Read it as a finish specification, not a quality score.
Beyond the matrix, these are the properties the product page states for the range — the practical reasons a customer accepts the upgrade.
Tell us the vehicle type, the panels to cover and the grades you want to test — the team can confirm current specifications, roll formats and OEM/ODM options for your order.
Keep adjacent product options together for a faster catalog comparison.
The pre-cut software provides a digital solution for precise vehicle film installation, reducing film waste and time. It supports multiple film types with AI-powered 3D scanning.
View product

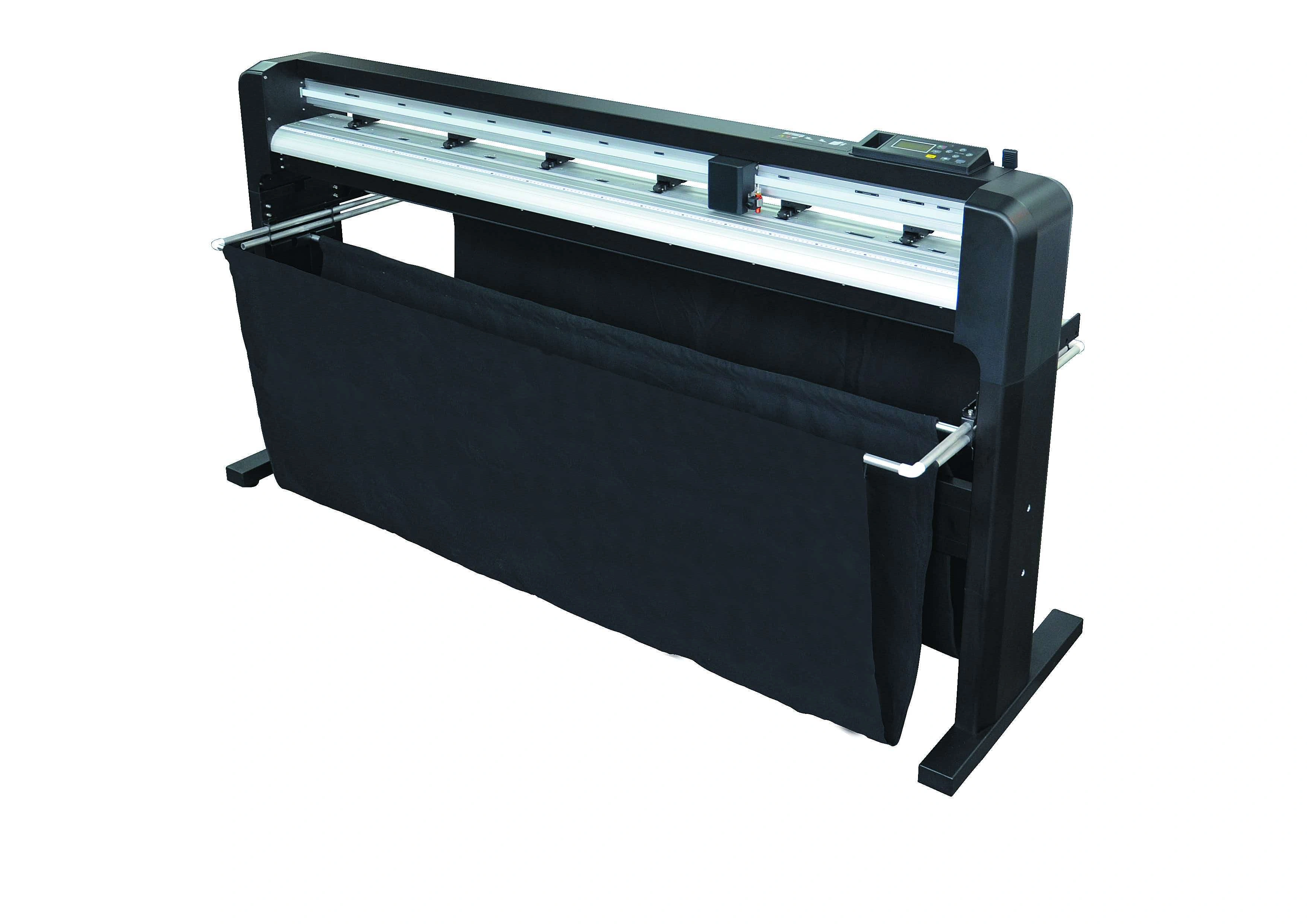

Achieve precise cuts with the Roll Fed Cutting Plotter, a lightweight roll fed cutting plotter that handles wide media up to 1780mm for vinyl and PPF.
View product

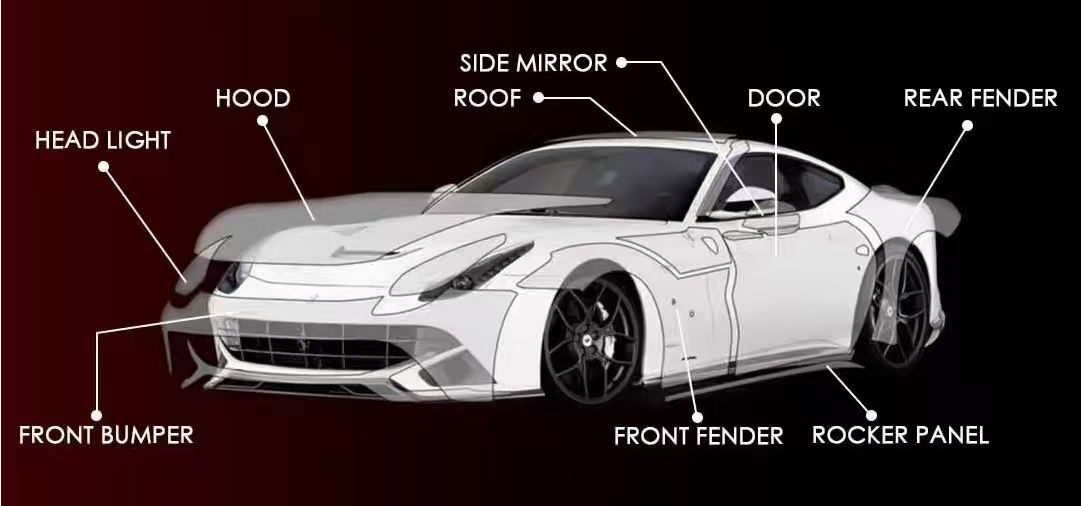

Cutting software with an ever-growing vehicle database: matching panel templates, precise model versions and AI-assisted layout.
